Insert Switcher Octavus

Insert Switcher Octavus

€1.799,95 EUR
€1.799,95 EUR
Sale Sold out
Taxes included.

Analog Mastering Console

Three Stereo Inputs, Three Stereo Outputs

Eight Stereo Insert Pairs

Fully Balanced Throughout

E&OE
View full details

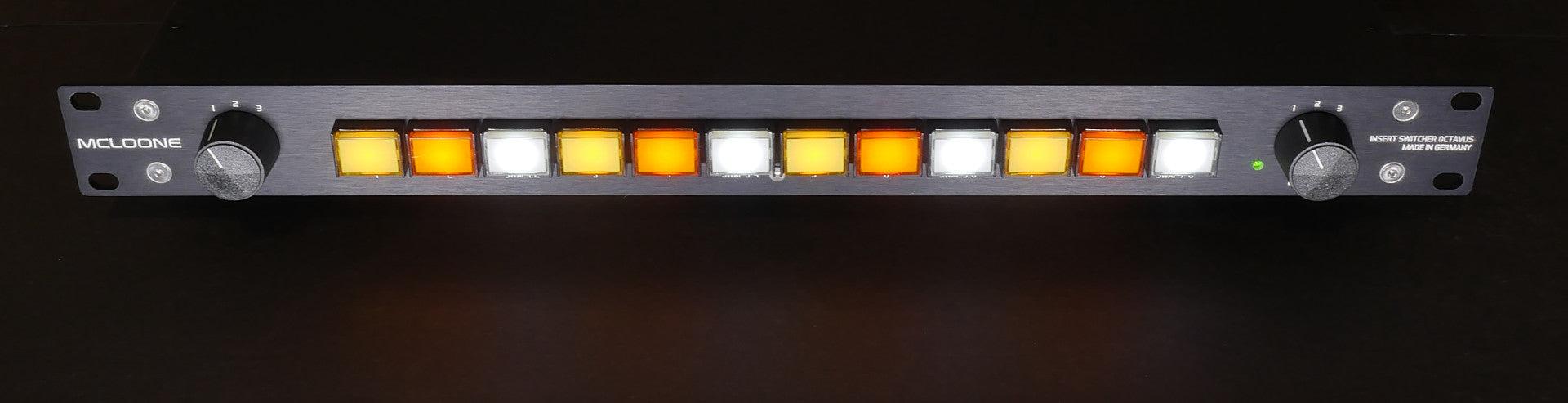

Re-wire your stereo signal chain, at the touch of a Button

Toggle up to 8-Stereo insert points in and out of the single path

A single button controls a stereo device

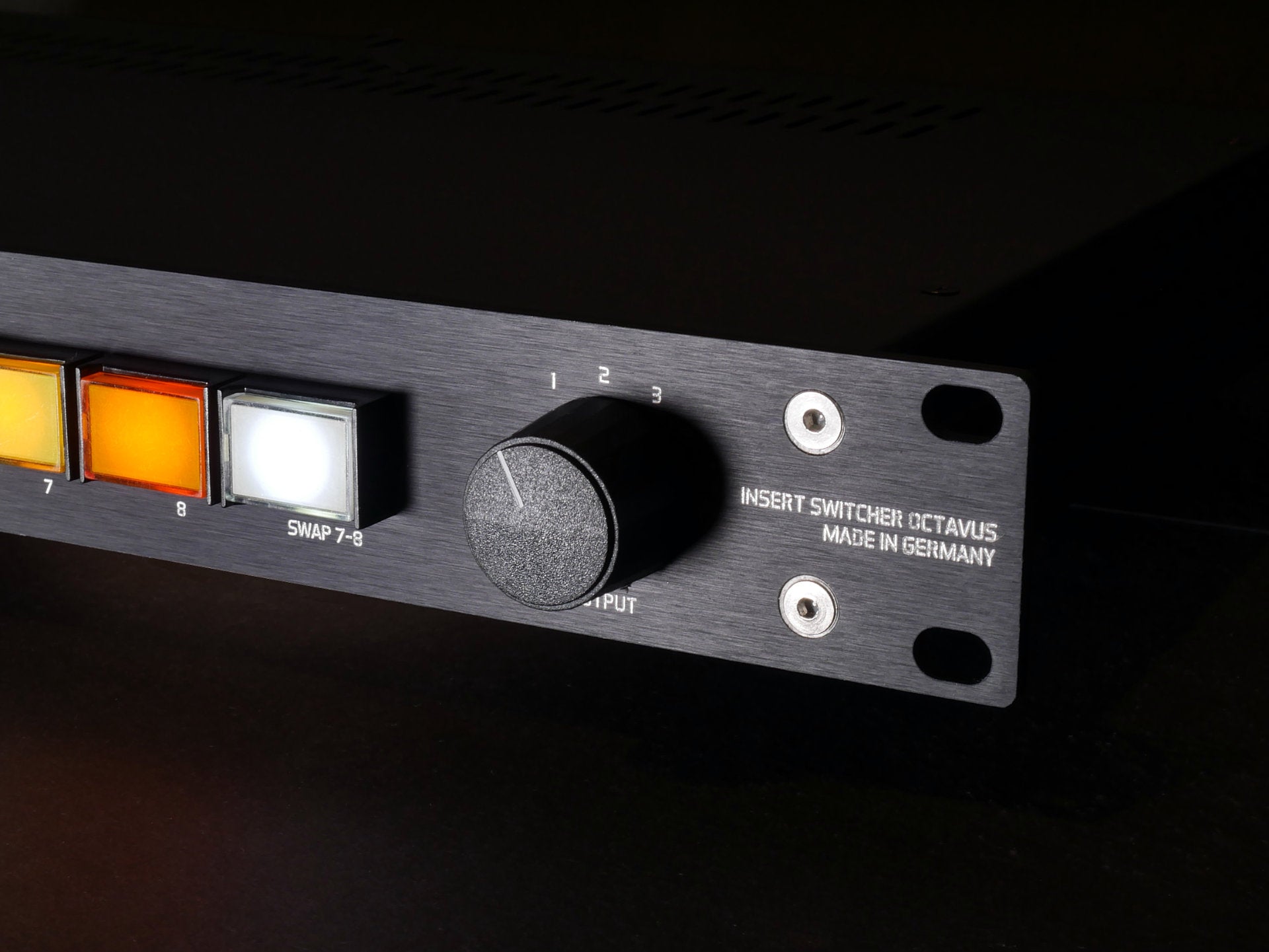

Relay switched input/output selectors. Select from 3-Stereo sources, route to one of 3-Stereo destinations.

Sound that equals a patch-bay

Passive electronics architecture

No converters, no operational amplifiers

Fully balanced throughout

Your Analog Hub

With eight stereo insert points, it's possible to keep all your mastering outboard connected and ready to go

Have up to eight stereo EQs/dynamics or other processors, ready to toggle in and out of the mix, at the press of a single button.

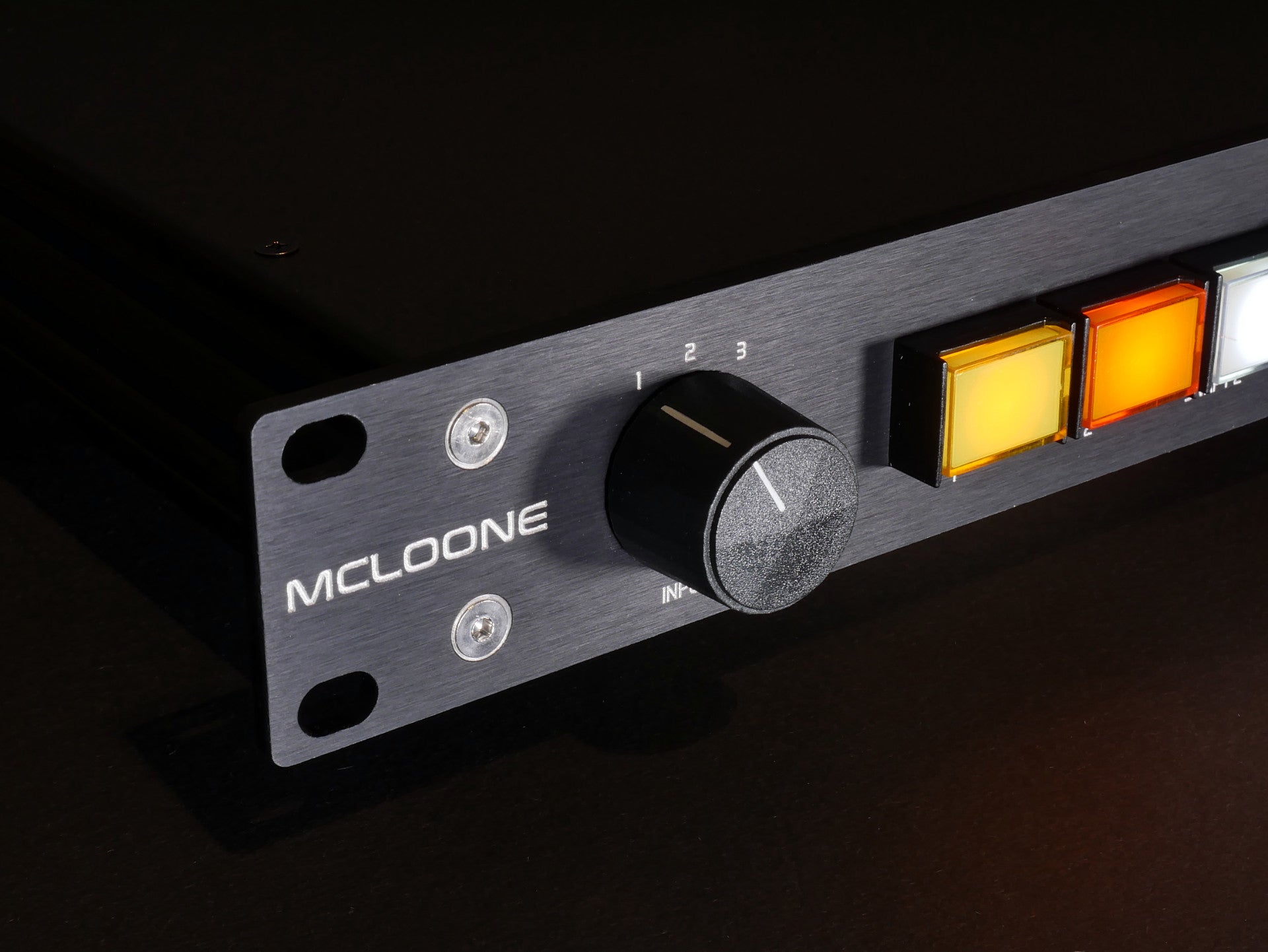

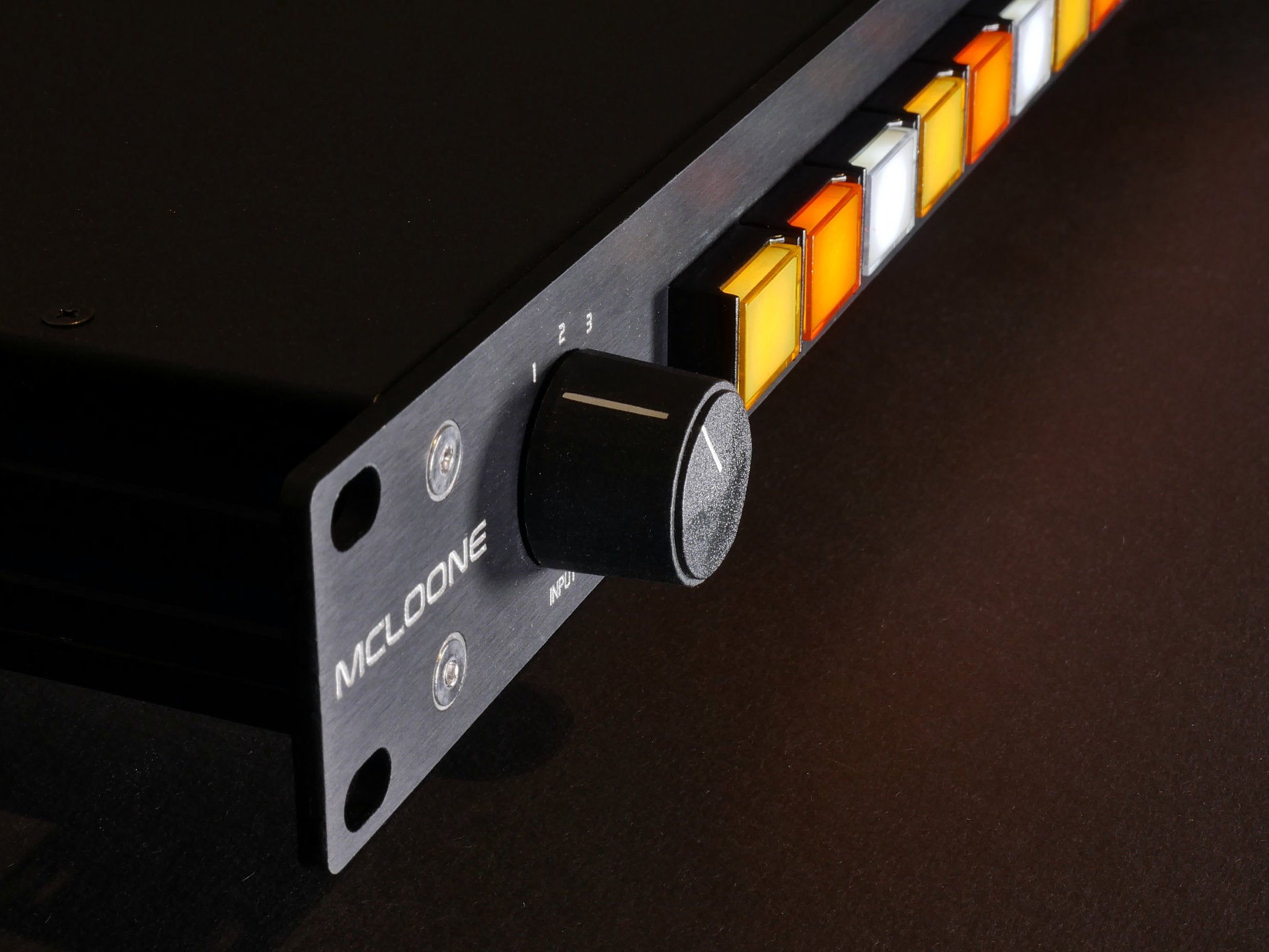

The input select rotary allows you to choose between up to three stereo sources. We've also provided three stereo outputs for routing to your A/D, outboard recorder or tape. Available at the turn of a dial, and without the need for patch cables.

Stop Patching, Start Switching

Re-order pairs of devices on the fly

Want to try the EQ before the compressor instead? Just hit the "swap" button. Not better? One button, and it's back where it was.

Downloads

Insert Switcher Manual - English

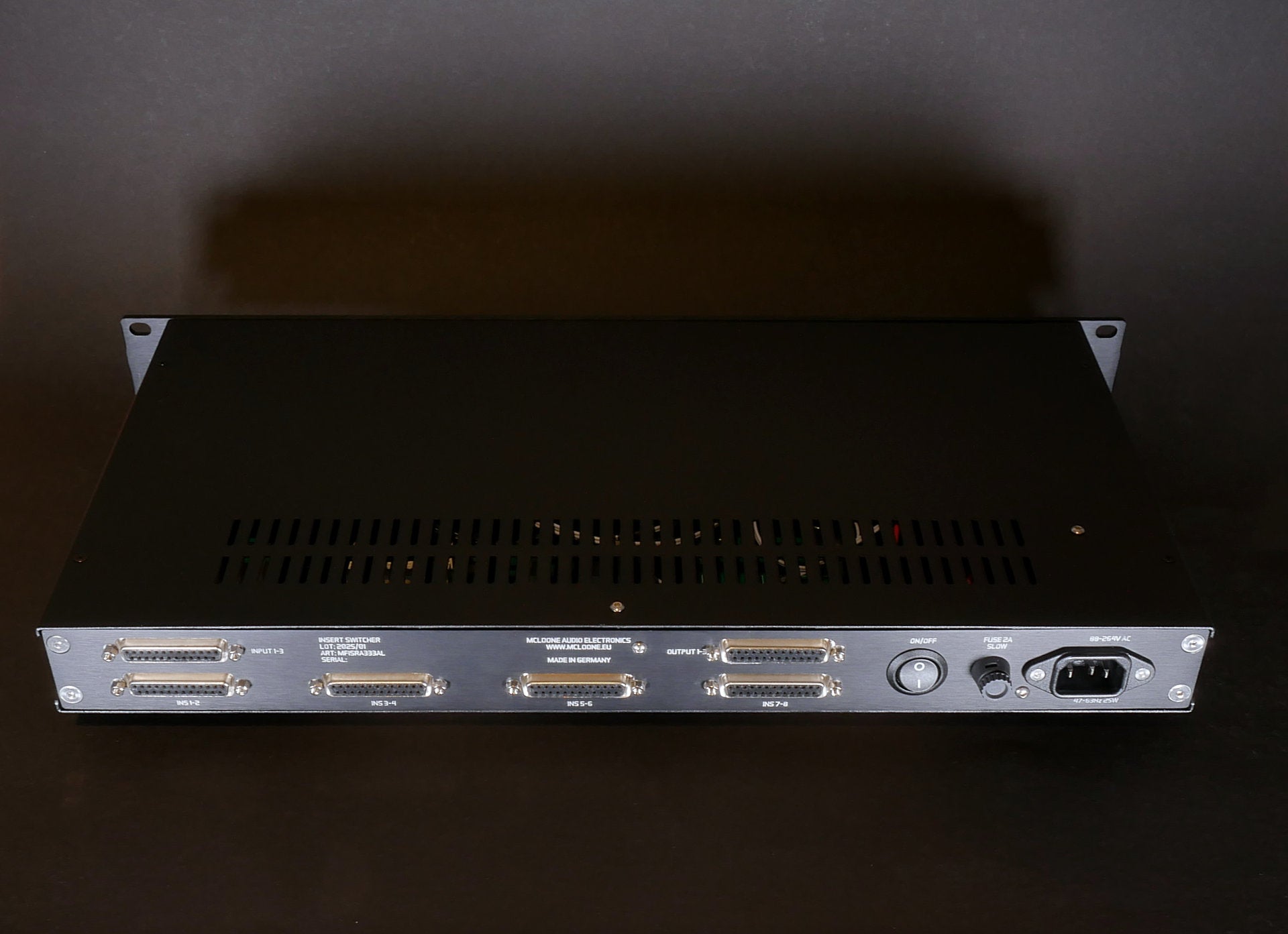

Tascam DB25

In order to be able to provide the most connectivity possible, we have chosen to use Tascam DB25 format. This provides a quick, standardized method to install in most setups.

Specification

Power Requirements: Universal Internal Power Supply, Auto-Sensing, 85-264VAC, 47-63Hz, 30W

Inputs: 3x Stereo Balanced on DB25 connectors

Inserts: 8x Stereo Balanced Input & Output on DB25 connectors

Outputs: 3x Stereo Balanced on DB25 connectors

Bandwidth: DC to >500KHz

Frequency Response (20-20kHz)* -0.08dB, +0.01dB

THD+N:* Better than 0.0006%

Dynamic Range (A):* Better than 119dB

Cross-Talk (1kHz):* -97dB

Cross-Talk (10kHz):* -76dB

Maximum Input Level: Greater than +26dBu

Maximum Output Level: Follows input source used

Weight: 3.2KG

Designed & Manufactured in Berlin, Germany

(*) All inserts on, all swap function on, DB25 loopback on insert points. Frequency response, THDN and dynamic range results represent limitations of the audio test equipment used. Measurements in accordance with AES17 specification.
