Insert Switcher Quartus

Insert Switcher Quartus

€1.394,95 EUR
€1.394,95 EUR
Sale Sold out
Taxes included.

Analog Mastering Console

Stereo XLR Input, Stereo XLR Output

Four Stereo Insert Pairs

Fully Balanced Throughout

View full details

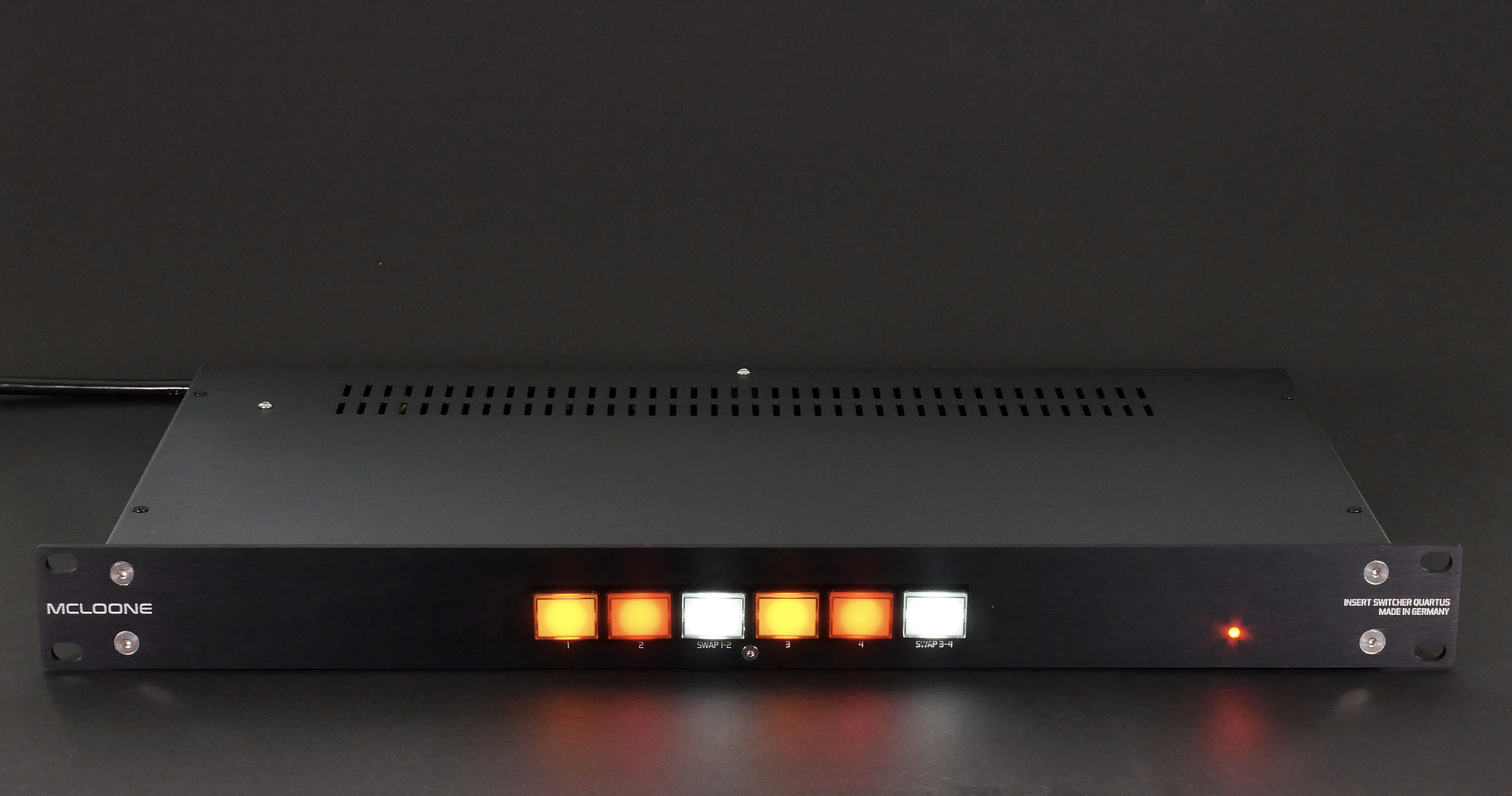

Re-wire your stereo signal chain, at the touch of a Button

Toggle up to 4-Stereo insert points in and out of the single path

A single button controls a stereo device

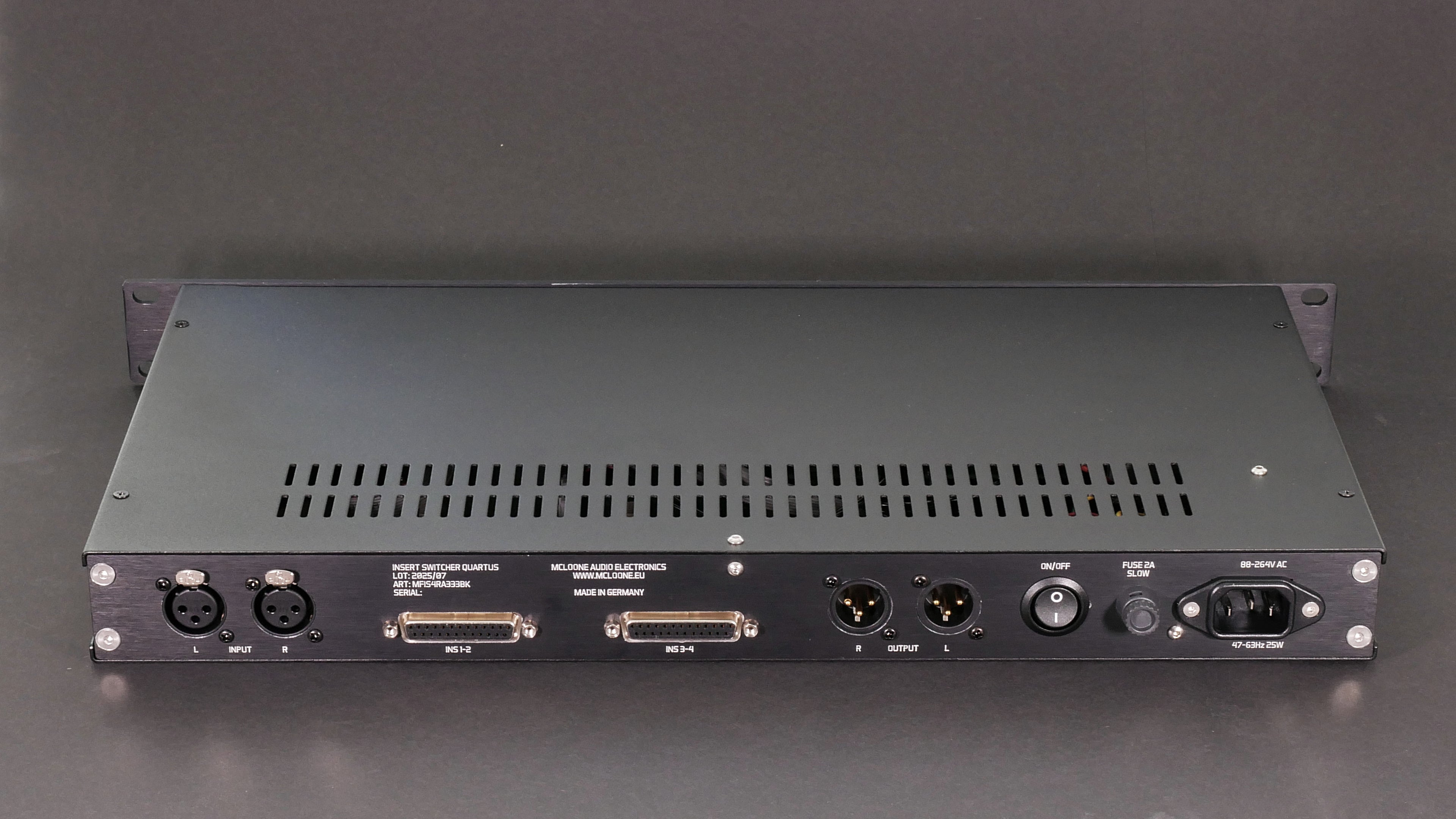

Stereo input and output on XLR connectors

Sound that equals a patch-bay

Passive electronics architecture

No converters, no operational amplifiers

Fully balanced throughout

Your Analog Hub

With four stereo insert points, it's possible to keep all your mastering outboard connected and ready to go

Have up to four stereo EQs/dynamics or other processors, ready to toggle in and out of the mix, at the press of a single button.

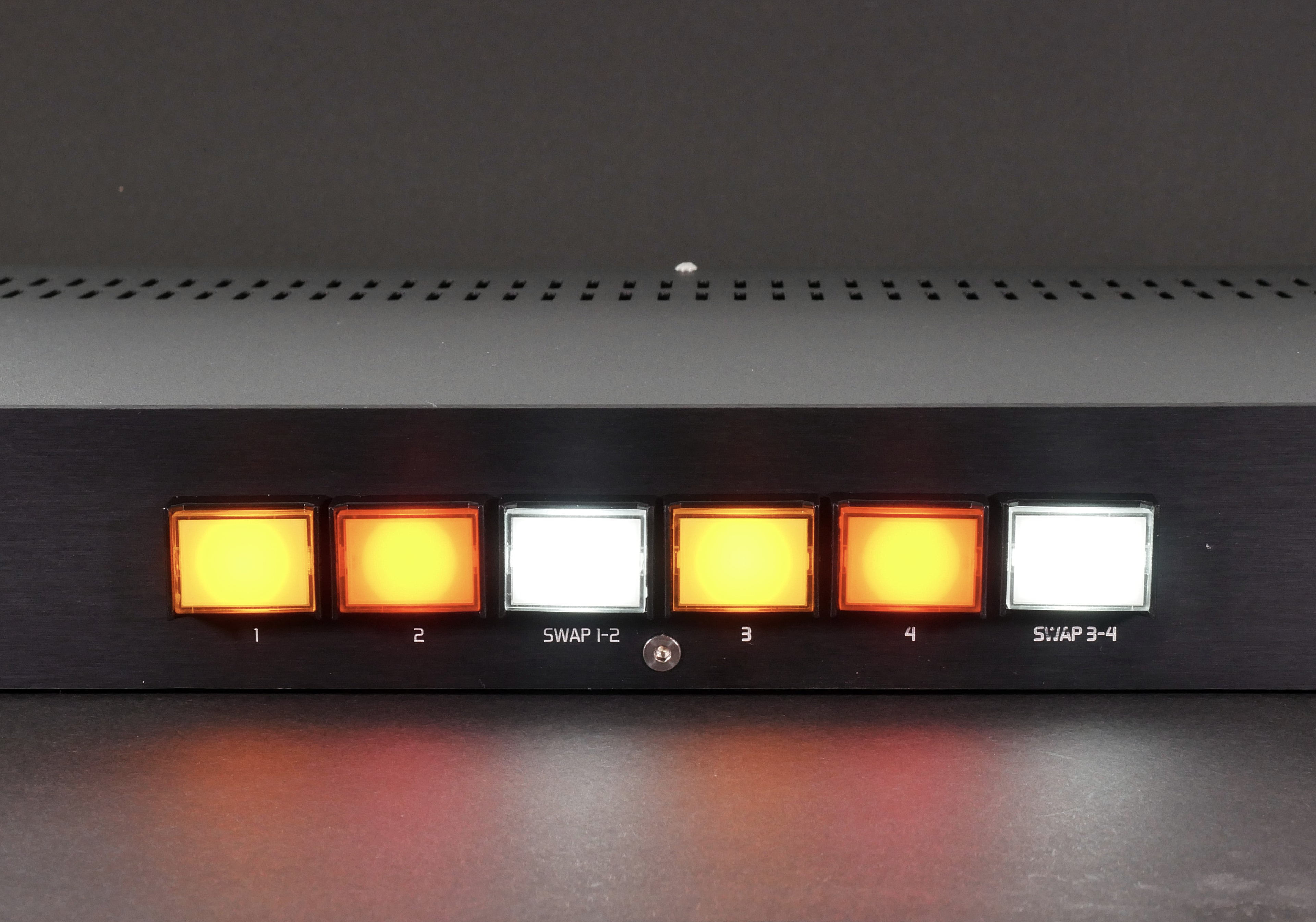

Stop Patching, Start Switching

Re-order pairs of devices on the fly

Want to try the EQ before the compressor instead? Just hit the "swap" button. Not better? One button, and it's back where it was.

Downloads

Insert Switcher Manual - English

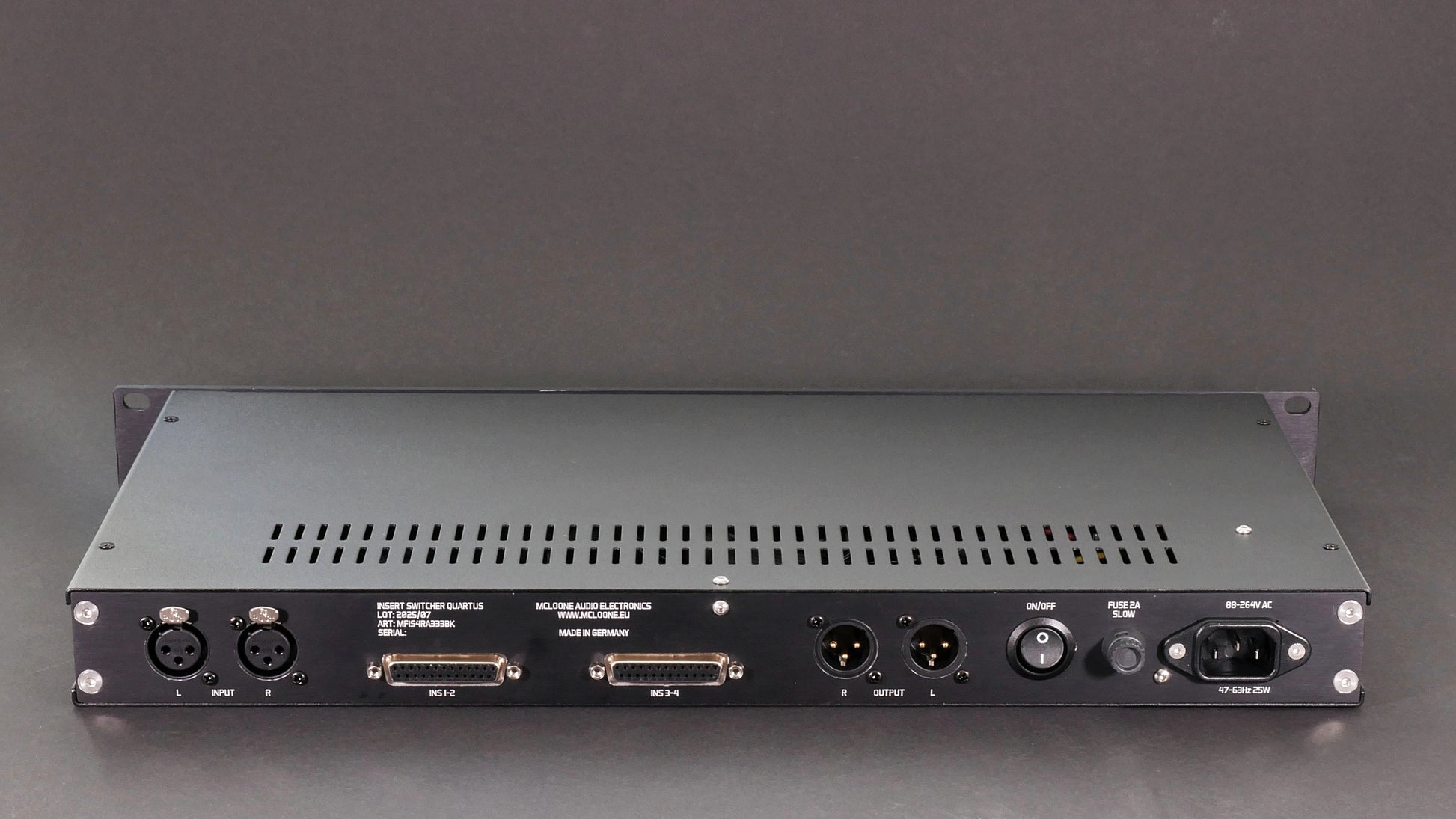

Tascam DB25

In order to be able to provide the most connectivity possible, we have chosen to use Tascam DB25 format. This provides a quick, standardized method to install in most setups.

Specification

Power Requirements: Universal Internal Power Supply, Auto-Sensing, 85-264VAC, 47-63Hz, 30W

Inputs: Stereo Balanced on XLR connectors

Inserts: 4x Stereo Balanced Input & Output on DB25 connectors

Outputs: Stereo Balanced on XLR connectors

Bandwidth: DC to >500KHz

Frequency Response (20-20kHz)* -0.08dB, +0.01dB

THD+N:* Better than 0.0006%

Dynamic Range (A):* Better than 119dB

Cross-Talk (1kHz):* -97dB

Cross-Talk (10kHz):* -76dB

Maximum Input Level: Greater than +26dBu

Maximum Output Level: Follows input source used

Weight: 3.2KG

Designed & Manufactured in Berlin, Germany

(*) All inserts on, all swap function on, DB25 loopback on insert points. Frequency response, THDN and dynamic range results represent limitations of the audio test equipment used. Measurements in accordance with AES17 specification.
